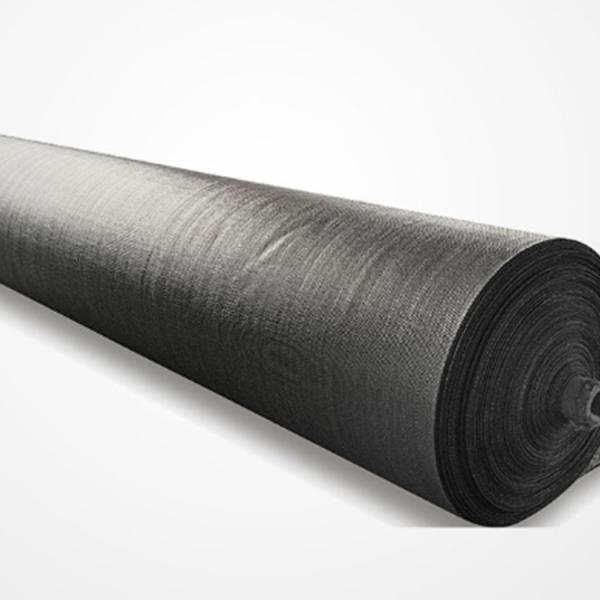

370G Woven Geotextile Fabric for Dewatering and Geotube Applications
Premium Products
370G Woven Geotextile Fabric for Dewatering and Geotube Applications
1
2
3
4
5
6
Place of Origin :Zhejiang, China
Brand Name :HONGHUAN
Model Number :MGW370
MOQ :10000
Geotextile Type :Woven Geotextiles
Material :Polypropylene
Color :White Black
Mass Per Unit Area :120-580 g/m2
Tensile Strength MD :20-160 kN/m
Tensile Strength CD :15-110 kN/m
Elongation MD :25%
Elongation CD :25%
Apparent Opening Size :0.41 mm
Water Flow Rate :160 l/min/m2
Trapezoidal Tear Strength :0.20-1.10 kN
CBR Ejection Force :1.60-12.00 kN
UV Resistance :70% retained after 500 hours
Roll Width :5.85 m
Roll Length :100 m
Contact Now
Product Description
Woven Geotextile SWG®

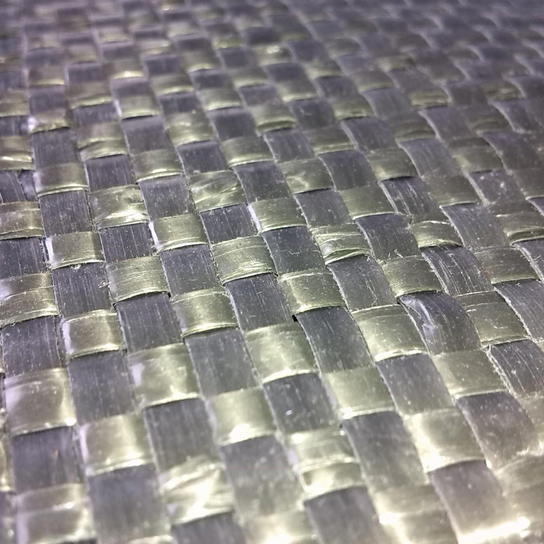

Split Film Yarn Woven Geotextile are made by weaving flat strands created by first slitting a plastic sheet. Woven
split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These
geotextiles aid in construction over soft or weak soils by providing separation and stabilization.
Product Specifications
PROPERTIES
TEST METHOD
UNIT
MINIMUM AVERAGE VALUE
SWG12
SWG20
SWG24
SWG34
SWG40
SWG52
SWG58
Mass Per Unit Area
ASTM D 5261
g/m2
120
200
240
340
400
520
580
Tensile strength, MD
ASTM D 4632
kN/m
20
40
50
80
80
140
160
Tensile strength, CD
ASTM D 4632
kN/m
15
28
35
56
80
100
110
Elongation, MD
ASTM D 4632
%
25
25
25
25
25
25
25
Elongation, CD
ASTM D 4632
%
25
25
25
25
25
25
25
Apparent Opening Size
ASTM D 4751
mm
0.41
0.41
0.41
0.41
0.41
0.41
0.41
Permittivity
ASTM D 4491
sec-1
NA
NA
NA
NA
NA
NA
NA
Water Flow Rate
ASTM D 4491
l/min/m2
160
160
160
160
160
160
160
Trapezoidal Tear Strength
ASTM D 4533
kN
0.20
0.34
0.41
0.60
0.72
0.96
1.10
CBR Ejection Force
ASTM D 6241
kN
1.60
3.20
4.00
6.00
7.50
10.50
12.00
UV Resistance (% retained after 500 hours)
ASTM D 4355
%
70
70
70
70
70
70
70
ROLL DIMENSIONS
Roll Width
m
5.85
5.85
5.85
5.85
5.85
5.85
5.85
Roll Length
m
100
100
100
100
100
100
100
Roll Weight
Kg
70
117
140
199
234
304
339
NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.
This information is provided for reference purposes only and is not intended as a warranty or guarantee. Ningbo HongHuan assumes no liability in connection with the use of this information. Specifications subject to change without notice.
Applications
1. Weed block for landscaped garden beds
2. Permeable liners for planters (stops soil erosion)
3. Weed control under wooden decking
4. Geotextile for separating aggregate / soils under walkway blocks or bricks
5. Assists in preventing paving from settling unevenly
6. Landscape fabric prevents soil erosion
